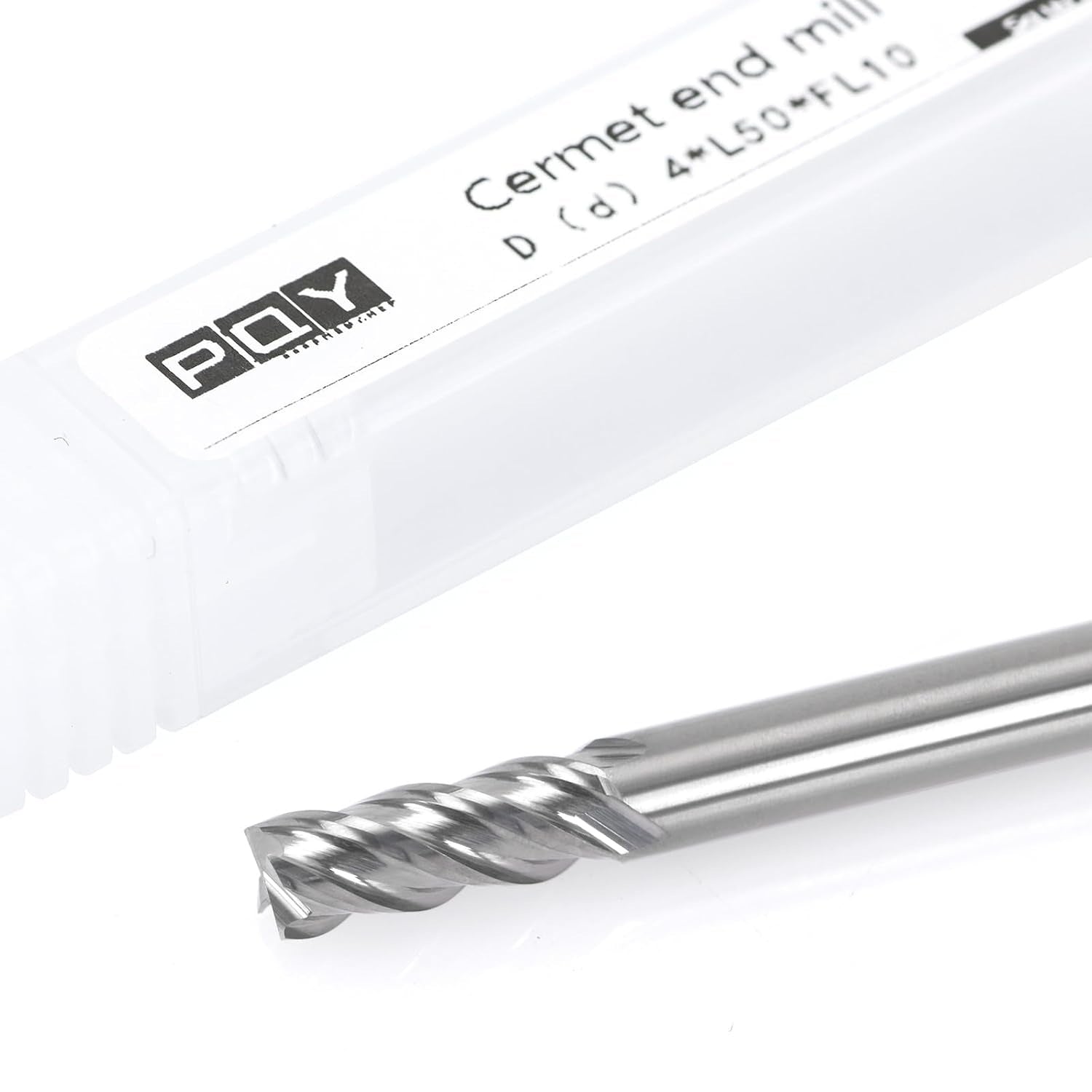

4mm Cermet Flat End Mill with 4mm Shank
Part number DTP03
Single cermet flat end mill with a 4 mm cutting diameter and 4 mm shank.
$10.99
In stock
Compatible Equipment
Milling machines and CNC routers using a 4 mm precision collet
Confirm the application details and compare the product images before ordering.
- Cutting Diameter
- 4 mm
- Shank Diameter
- 4 mm
- Overall Length
- 50 mm
What This Part Does
A compact four-flute flat end mill with matching 4 mm cutting and shank diameters. Its monolithic, uncoated cermet construction is intended for stable milling and a clean machined finish when feeds, speeds, clamping, and coolant are selected for the work material. For compatible milling machines and CNC equipment using a 4 mm shank; select feeds and speeds for the work material and machine.
Fitment
Confirm every listed condition against your vehicle or system before ordering.
- Compatible Equipment
- Milling machines and CNC routers using a 4 mm precision collet
- Recommended Materials
- Medium- and low-carbon steel, P20, 40Cr, 45 steel, 4Cr13, heat-resistant steel, gray cast iron, and alloy steel
- Machining Operations
- Side slotting, deep-trench cutting, and plane or side milling
Product Specifications
- Specifications
- Cermet cutting material; cutting diameter: 4 mm; shank diameter: 4 mm; flute length: 10 mm; overall length: 50 mm.
- Material
- Cermet
- Cermet cutting material; cutting diameter
- 4 mm; shank diameter: 4 mm; flute length: 10 mm; overall length: 50 mm.
In the Box
- 1 x 4 mm cermet flat end mill
- 1 cermet flat end mill. This is a single cutter, not a five-piece pack.
Installation Checks
- Confirm that the machine collet accepts a 4 mm shank.
- Clean the shank and collet, then insert the tool to a secure clamping depth.
- Tighten the collet to the machine manufacturer's specification and verify runout.
- Select feeds, speeds, and coolant for the work material; make a controlled test cut first.
